SS-NEST Shear Extension

The Shear Extension expands the capability of SS-Nest to nest rectangular blanks specifically for guillotine shear operations. A shear cut report is generated showing shear cut locations and cut sequence.

The benefits of SS-Nest Shear Extension include:

Material Savings – Shear scrap is significantly reduced.
Increased Production Levels – More blanks created per sheet means increased production levels.
Adaptable – Shear Extension can be configured to your specific shear and material requirements.
Multiple Part Input Options – DXF or DWG files can be imported, parts existing in the PARTshare library can be nested, or part blanks can be dynamically created simply by designating the X and Y lengths and required quantity.

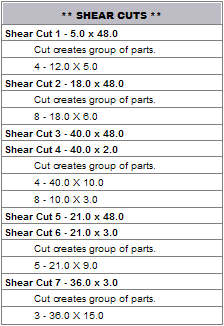

Advanced Reporting – A comprehensive shear report is generated to guide the shear operator. This report includes shear cut locations, shear cut sequence, part list, and material requirements.
